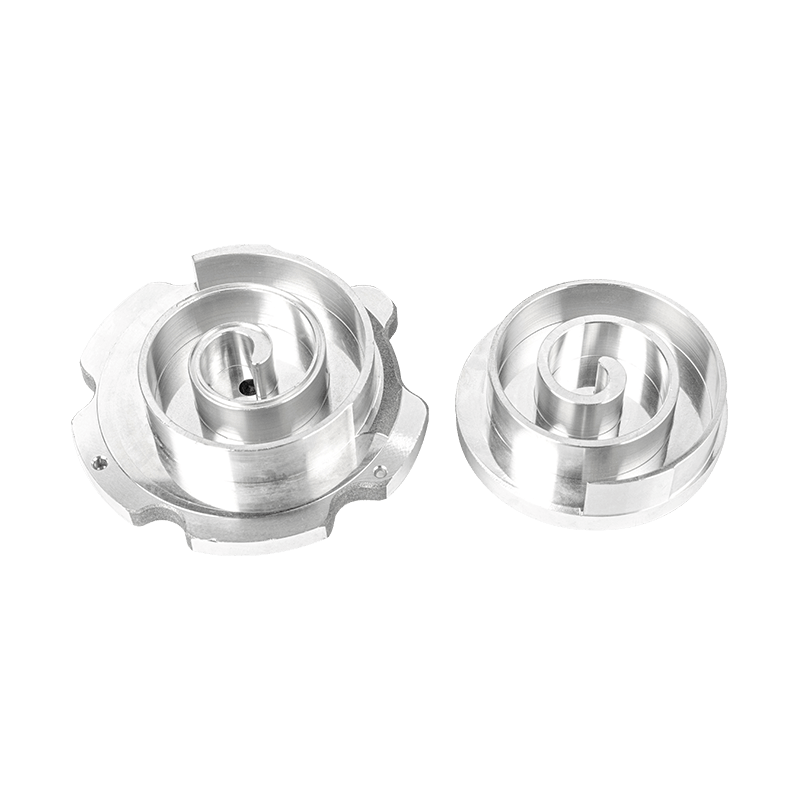

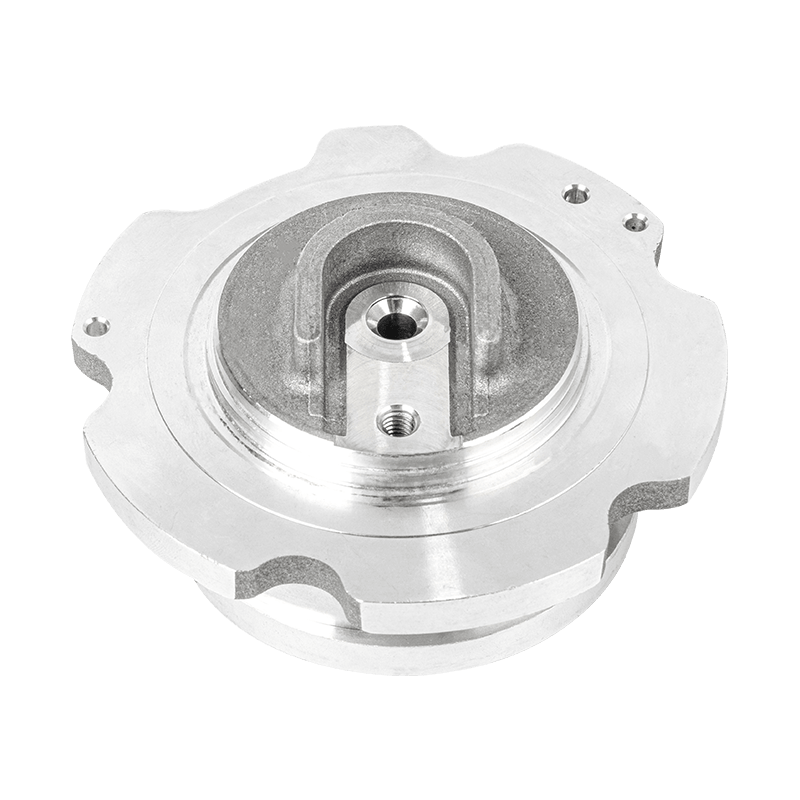

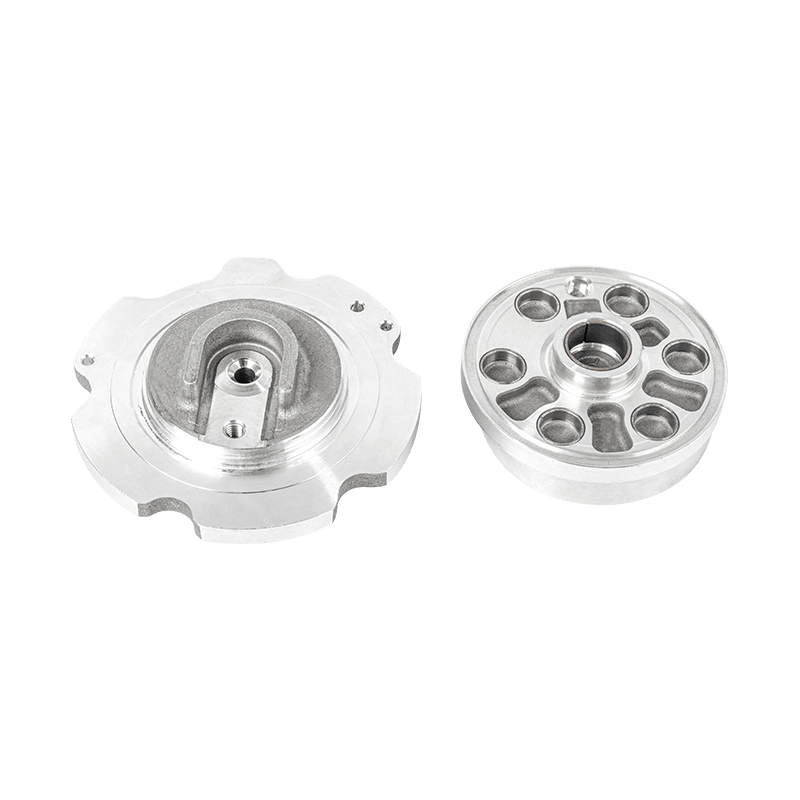

Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts

Home / Products / Aluminum Low Pressure Die-Casting / Auto Air Conditioning Compressor Parts / Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts

  • More Than 10 Years Experience On Aluminum Die Casting

  • Compliance With Standards IATF16949

  • APQP Production Process

  • Strong Technical R&D Capability

  • Annual Sales Exceed 260 Million

  • Covers Area 26685 m2, Building Area 31000 m2

Product Parameters

Parts Parameter:

Part Name:

Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts

Part Material:

Aluminum AC8C-T6

Part Size:

Φ103*35mm

Part Weight:

0.45KG

Part Usage:

Air compressor mating part for automotive

Manufacturing Technique:

Low pressure die-casting
Contact us

Part Performance:
Tensile Strength: ≥300MPa
Hardness: ≥119~140HB
No pin holes are allowed
No defect is allowed at the scroll line area.

Part Difficulty:
No defect is allowed at the scroll line area.

Function:
Including the dynamic scroll and static scroll, which are composed of different materials to reduce the cost of manufacturing, noise and vibration, and more wear-resistant, prolong the service life.

  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
  • Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts
Production Process

  • Melt And Slag Removal

  • Die Casting

  • Machine Grinding

  • Fine Machining

  • Quality Control

  • Leak Testing

  • Shot Blasting

  • Packing and Pallet

Die-Casting Solution

  • Die-casting

    High/low pressure die-casting processing more than 12 types of alloys

    26 HPDC machines from 400T-1250T, 10 LPDC machines

    Production process follows APQP, raw material purchase and testing--melt and slag removal--die casting--fine machining--leak testing--cleaning-packing

    Annual processing capacity of 10,000 tons of aluminium die-casting

  • Precision Machining

    Over 20 CNCs, VMCs, HMCs, SPMs, etc.

    Special purpose machines for large production

    In-line leak testing and ultrasonic washing

    Machining critical components for automotive transmission, engine, chassis, and other applications

  • Mold Design and Manufacturing

    Mold design and manufacturing including but not limited to

    apply APQP process, and we currently use CAD, Pro/E, UG,

    Anycasting software to support our designs.

Related Products
About Us

Ningbo Zunhang Automotive Parts Co., Ltd. founded in 2012, is a large-scale enterprise integrating professional aluminum die casting mold design, mold manufacturing and aluminum die casting parts production.

Zunhang gives full play to its team advantages and adheres to the business philosophy of "consistent words and deeds, dedicated service". The company successfully completed the certification of IATF16949 in 2018, All staff shall introduce "process risk management thinking and implement PDCA continuous improvement method". Professional Scroll Plate-Aluminum Low Pressure Die-Casting Auto Parts manufacturer and exporter in China.

Zunhang invested in the establishment of its subsidiary Ningbo Hangjin Auto Parts Co., Ltd. in 2016. The company is located in Ningbo Xiangshan Chengdong Industrial Park. It is a manufacturing enterprise mainly engaged in low pressure casting, high pressure casting, gravity casting, squeeze casting and other processes, greatly expanding the scope of business development and improving the capacity delivery capacity.

Certificate
  • certificate
  • certificate
  • certificate
  • certificate
  • certificate
  • certificate
  • certificate
  • certificate
FAQ

  • Who We Are?

    Ningbo Zunhang Automotive Parts Co., Ltd is a comprehensive production enterprise, include aluminum die casting mold design and manufacturing, aluminum high/low die casting parts production and Fine machining process.

  • How Do We Ensure The Quality Control?

    Compliance with standards IATF16949. APQP production process. Digital workshop production management system.

  • Our Partner.

    Shanghai Sanden, Aotecar, Changjiang Automobile Electronic, Sanyang Electronics, Dyne, Joyson Electronics

  • Port of Shipment

    Ningbo, Shanghai

  • How About Our Production Capacity?

    26 HPDC machines, 10 LPDC machines. 15 fine machining machines Annual processing capacity of 10,000 tons of aluminium casting. Monthly production of over 1.5 million components.

  • Current Main Products.

    Aluminum Die Casting Auto A/C Compressor Parts, Auto Engine Accessories, Auto Drive System Parts, Electric Auto Accessories, CNC Machine Parts, Bridge Member, Heavy Truck Parts, etc.

  • Payment Terms

    30% in advance, then 70% balance after copy of the B/L.

  • Do We Accept Third-party Inspection?

    Yes.
